Ansible playbook 执行流程

背景

超时主要分两个场景，一个是建立 SSH 连接时，另外一个为通过 SSH 执行命令时的超时。前者主要依靠 SSH 命令的自带参数 ConnectTimeout，后者则有一套 Ansible 自己的实现。

建立连接超时

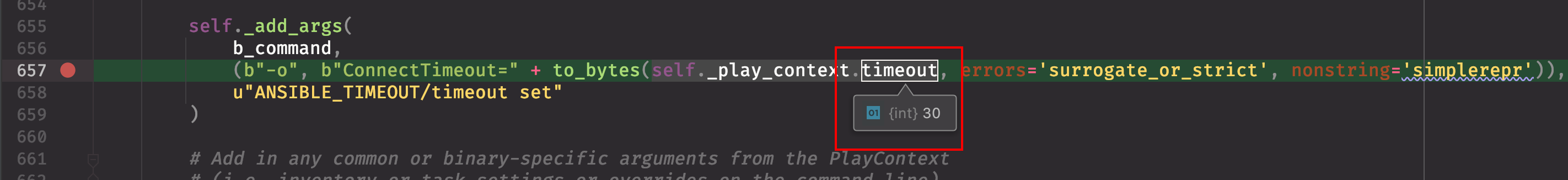

ansible 2 -u root -m ping -T 30。底层实现使用 ssh -o ConnectTimeout=30。

执行命令超时（playbook）

在 playbook 的 task 中加入 async 和 poll 属性。

  • async 表示这个step的最长等待时长,  如果设置为0, 表示一直等待下去直到动作完成；
  • poll 表示检查step操作结果的间隔时长，poll 设置为0, 表示不用等待执行结果, 该step执行成功。

测试用的 playbook 如下：

---
    - hosts: "1"
      vars:
        http_port: 80
        max_clients: 200
      remote_user: root
      tasks:
      - name: Sleep30s
        shell:
          "sleep 30s"
        async: 10
        poll: 1

启动命令如下：

ansible-playbook pb.yml

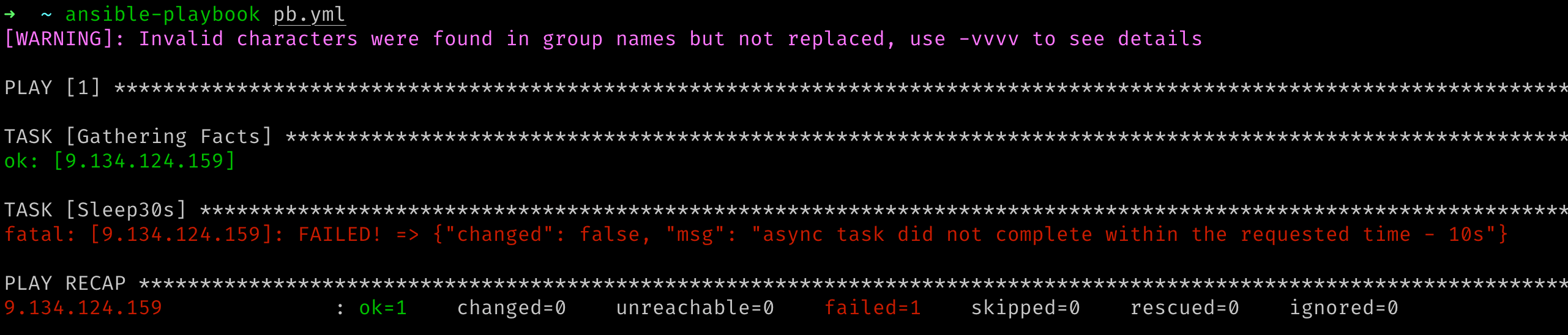

效果：

执行命令超时（playbook）的流程

在此 playbook 中，有一个 task，但是在执行上面定义的 task 之前，会执行一个 Gathering Facts 的 task，这里将此不太相干的 task 去掉了。task Sleep30s 的执行日志如下：

TASK [Sleep30s] ****************************************************************
task path: /Users/yangyu/pb.yml:8
<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 9.134.124.159 '/bin/sh -c '"'"'echo ~root && sleep 0'"'"''
<9.134.124.159> (0, b'/root\n', b'')

<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 9.134.124.159 '/bin/sh -c '"'"'( umask 77 && mkdir -p "` echo /root/.ansible/tmp `"&& mkdir "` echo /root/.ansible/tmp/ansible-tmp-1600333356.414965-42861-191307013081145 `" && echo ansible-tmp-1600333356.414965-42861-191307013081145="` echo /root/.ansible/tmp/ansible-tmp-1600333356.414965-42861-191307013081145 `" ) && sleep 0'"'"''
<9.134.124.159> (0, b'ansible-tmp-1600333356.414965-42861-191307013081145=/root/.ansible/tmp/ansible-tmp-1600333356.414965-42861-191307013081145\n', b'')

Using module file /Users/yangyu/projects/ansible/lib/ansible/modules/command.py
<9.134.124.159> PUT /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmp_66m3nen TO /root/.ansible/tmp/ansible-tmp-1600333356.414965-42861-191307013081145/AnsiballZ_command.py
<9.134.124.159> SSH: EXEC sftp -b - -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 '[9.134.124.159]'
<9.134.124.159> (0, b'sftp> put /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmp_66m3nen /root/.ansible/tmp/ansible-tmp-1600333356.414965-42861-191307013081145/AnsiballZ_command.py\n', b'')


<9.134.124.159> PUT /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmplmizhdvg TO /root/.ansible/tmp/ansible-tmp-1600333356.414965-42861-191307013081145/async_wrapper.py
<9.134.124.159> SSH: EXEC sftp -b - -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 '[9.134.124.159]'
<9.134.124.159> (0, b'sftp> put /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmplmizhdvg /root/.ansible/tmp/ansible-tmp-1600333356.414965-42861-191307013081145/async_wrapper.py\n', b'')


<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 9.134.124.159 '/bin/sh -c '"'"'chmod u+x /root/.ansible/tmp/ansible-tmp-1600333356.414965-42861-191307013081145/ /root/.ansible/tmp/ansible-tmp-1600333356.414965-42861-191307013081145/AnsiballZ_command.py /root/.ansible/tmp/ansible-tmp-1600333356.414965-42861-191307013081145/async_wrapper.py && sleep 0'"'"''
<9.134.124.159> (0, b'', b'')


<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 -tt 9.134.124.159 '/bin/sh -c '"'"'ANSIBLE_ASYNC_DIR='"'"'"'"'"'"'"'"'~/.ansible_async'"'"'"'"'"'"'"'"' /usr/bin/python /root/.ansible/tmp/ansible-tmp-1600333356.414965-42861-191307013081145/async_wrapper.py 48991476669 10 /root/.ansible/tmp/ansible-tmp-1600333356.414965-42861-191307013081145/AnsiballZ_command.py _ && sleep 0'"'"''
<9.134.124.159> (0, b'{"started": 1, "_ansible_suppress_tmpdir_delete": true, "finished": 0, "results_file": "/root/.ansible_async/48991476669.20840", "ansible_job_id": "48991476669.20840"}\r\n', b'Shared connection to 9.134.124.159 closed.\r\n')


<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 9.134.124.159 '/bin/sh -c '"'"'echo ~root && sleep 0'"'"''
<9.134.124.159> (0, b'/root\n', b'')


<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 9.134.124.159 '/bin/sh -c '"'"'( umask 77 && mkdir -p "` echo /root/.ansible/tmp `"&& mkdir "` echo /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103 `" && echo ansible-tmp-1600333358.847193-42861-146017266031103="` echo /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103 `" ) && sleep 0'"'"''
<9.134.124.159> (0, b'ansible-tmp-1600333358.847193-42861-146017266031103=/root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103\n', b'')


Using module file /Users/yangyu/projects/ansible/lib/ansible/modules/async_status.py
<9.134.124.159> PUT /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmpgapz8kyp TO /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py
<9.134.124.159> SSH: EXEC sftp -b - -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 '[9.134.124.159]'
<9.134.124.159> (0, b'sftp> put /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmpgapz8kyp /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py\n', b'')

<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 9.134.124.159 '/bin/sh -c '"'"'chmod u+x /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/ /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'', b'')


<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 -tt 9.134.124.159 '/bin/sh -c '"'"'/usr/bin/python /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'\r\n{"started": 1, "invocation": {"module_args": {"jid": "48991476669.20840", "mode": "status", "_async_dir": "/root/.ansible_async"}}, "finished": 0, "ansible_job_id": "48991476669.20840"}\r\n', b'Shared connection to 9.134.124.159 closed.\r\n')
ASYNC POLL on 9.134.124.159: jid=48991476669.20840 started=1 finished=0


Using module file /Users/yangyu/projects/ansible/lib/ansible/modules/async_status.py
<9.134.124.159> PUT /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmpph94rjs7 TO /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py
<9.134.124.159> SSH: EXEC sftp -b - -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 '[9.134.124.159]'
<9.134.124.159> (0, b'sftp> put /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmpph94rjs7 /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py\n', b'')

<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 9.134.124.159 '/bin/sh -c '"'"'chmod u+x /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/ /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'', b'')

<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 -tt 9.134.124.159 '/bin/sh -c '"'"'/usr/bin/python /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'\r\n{"started": 1, "invocation": {"module_args": {"jid": "48991476669.20840", "mode": "status", "_async_dir": "/root/.ansible_async"}}, "finished": 0, "ansible_job_id": "48991476669.20840"}\r\n', b'Shared connection to 9.134.124.159 closed.\r\n')
ASYNC POLL on 9.134.124.159: jid=48991476669.20840 started=1 finished=0


Using module file /Users/yangyu/projects/ansible/lib/ansible/modules/async_status.py
<9.134.124.159> PUT /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmpia9_huhw TO /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py
<9.134.124.159> SSH: EXEC sftp -b - -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 '[9.134.124.159]'
<9.134.124.159> (0, b'sftp> put /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmpia9_huhw /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py\n', b'')

<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 9.134.124.159 '/bin/sh -c '"'"'chmod u+x /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/ /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'', b'')

<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 -tt 9.134.124.159 '/bin/sh -c '"'"'/usr/bin/python /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'\r\n{"started": 1, "invocation": {"module_args": {"jid": "48991476669.20840", "mode": "status", "_async_dir": "/root/.ansible_async"}}, "finished": 0, "ansible_job_id": "48991476669.20840"}\r\n', b'Shared connection to 9.134.124.159 closed.\r\n')
ASYNC POLL on 9.134.124.159: jid=48991476669.20840 started=1 finished=0


Using module file /Users/yangyu/projects/ansible/lib/ansible/modules/async_status.py
<9.134.124.159> PUT /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmp0dw1l581 TO /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py
<9.134.124.159> SSH: EXEC sftp -b - -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 '[9.134.124.159]'
<9.134.124.159> (0, b'sftp> put /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmp0dw1l581 /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py\n', b'')

<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 9.134.124.159 '/bin/sh -c '"'"'chmod u+x /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/ /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'', b'')

<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 -tt 9.134.124.159 '/bin/sh -c '"'"'/usr/bin/python /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'\r\n{"started": 1, "invocation": {"module_args": {"jid": "48991476669.20840", "mode": "status", "_async_dir": "/root/.ansible_async"}}, "finished": 0, "ansible_job_id": "48991476669.20840"}\r\n', b'Shared connection to 9.134.124.159 closed.\r\n')
ASYNC POLL on 9.134.124.159: jid=48991476669.20840 started=1 finished=0


Using module file /Users/yangyu/projects/ansible/lib/ansible/modules/async_status.py
<9.134.124.159> PUT /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmp640778bz TO /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py
<9.134.124.159> SSH: EXEC sftp -b - -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 '[9.134.124.159]'
<9.134.124.159> (0, b'sftp> put /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmp640778bz /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py\n', b'')

<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 9.134.124.159 '/bin/sh -c '"'"'chmod u+x /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/ /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'', b'')

<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 -tt 9.134.124.159 '/bin/sh -c '"'"'/usr/bin/python /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'\r\n{"started": 1, "invocation": {"module_args": {"jid": "48991476669.20840", "mode": "status", "_async_dir": "/root/.ansible_async"}}, "finished": 0, "ansible_job_id": "48991476669.20840"}\r\n', b'Shared connection to 9.134.124.159 closed.\r\n')
ASYNC POLL on 9.134.124.159: jid=48991476669.20840 started=1 finished=0


Using module file /Users/yangyu/projects/ansible/lib/ansible/modules/async_status.py
<9.134.124.159> PUT /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmp_snd1eu9 TO /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py
<9.134.124.159> SSH: EXEC sftp -b - -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 '[9.134.124.159]'
<9.134.124.159> (0, b'sftp> put /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmp_snd1eu9 /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py\n', b'')

<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 9.134.124.159 '/bin/sh -c '"'"'chmod u+x /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/ /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'', b'')

<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 -tt 9.134.124.159 '/bin/sh -c '"'"'/usr/bin/python /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'\r\n{"started": 1, "invocation": {"module_args": {"jid": "48991476669.20840", "mode": "status", "_async_dir": "/root/.ansible_async"}}, "finished": 0, "ansible_job_id": "48991476669.20840"}\r\n', b'Shared connection to 9.134.124.159 closed.\r\n')
ASYNC POLL on 9.134.124.159: jid=48991476669.20840 started=1 finished=0


Using module file /Users/yangyu/projects/ansible/lib/ansible/modules/async_status.py
<9.134.124.159> PUT /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmpk13c6mm6 TO /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py
<9.134.124.159> SSH: EXEC sftp -b - -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 '[9.134.124.159]'
<9.134.124.159> (0, b'sftp> put /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmpk13c6mm6 /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py\n', b'')


<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 9.134.124.159 '/bin/sh -c '"'"'chmod u+x /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/ /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'', b'')

<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 -tt 9.134.124.159 '/bin/sh -c '"'"'/usr/bin/python /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'\r\n{"started": 1, "invocation": {"module_args": {"jid": "48991476669.20840", "mode": "status", "_async_dir": "/root/.ansible_async"}}, "finished": 0, "ansible_job_id": "48991476669.20840"}\r\n', b'Shared connection to 9.134.124.159 closed.\r\n')
ASYNC POLL on 9.134.124.159: jid=48991476669.20840 started=1 finished=0


Using module file /Users/yangyu/projects/ansible/lib/ansible/modules/async_status.py
<9.134.124.159> PUT /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmpfjdhm2l7 TO /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py
<9.134.124.159> SSH: EXEC sftp -b - -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 '[9.134.124.159]'
<9.134.124.159> (0, b'sftp> put /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmpfjdhm2l7 /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py\n', b'')

<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 9.134.124.159 '/bin/sh -c '"'"'chmod u+x /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/ /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'', b'')

<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 -tt 9.134.124.159 '/bin/sh -c '"'"'/usr/bin/python /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'\r\n{"started": 1, "invocation": {"module_args": {"jid": "48991476669.20840", "mode": "status", "_async_dir": "/root/.ansible_async"}}, "finished": 0, "ansible_job_id": "48991476669.20840"}\r\n', b'Shared connection to 9.134.124.159 closed.\r\n')
ASYNC POLL on 9.134.124.159: jid=48991476669.20840 started=1 finished=0


Using module file /Users/yangyu/projects/ansible/lib/ansible/modules/async_status.py
<9.134.124.159> PUT /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmpzqpsa6hl TO /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py
<9.134.124.159> SSH: EXEC sftp -b - -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 '[9.134.124.159]'
<9.134.124.159> (0, b'sftp> put /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmpzqpsa6hl /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py\n', b'')

<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 9.134.124.159 '/bin/sh -c '"'"'chmod u+x /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/ /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'', b'')

<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 -tt 9.134.124.159 '/bin/sh -c '"'"'/usr/bin/python /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'\r\n{"started": 1, "invocation": {"module_args": {"jid": "48991476669.20840", "mode": "status", "_async_dir": "/root/.ansible_async"}}, "finished": 0, "ansible_job_id": "48991476669.20840"}\r\n', b'Shared connection to 9.134.124.159 closed.\r\n')
ASYNC POLL on 9.134.124.159: jid=48991476669.20840 started=1 finished=0


Using module file /Users/yangyu/projects/ansible/lib/ansible/modules/async_status.py
<9.134.124.159> PUT /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmp_66e23_9 TO /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py
<9.134.124.159> SSH: EXEC sftp -b - -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 '[9.134.124.159]'
<9.134.124.159> (0, b'sftp> put /Users/yangyu/.ansible/tmp/ansible-local-42839upbl7lkg/tmp_66e23_9 /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py\n', b'')

<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 9.134.124.159 '/bin/sh -c '"'"'chmod u+x /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/ /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'', b'')

<9.134.124.159> ESTABLISH SSH CONNECTION FOR USER: root
<9.134.124.159> SSH: EXEC ssh -C -o ControlMaster=auto -o ControlPersist=60s -o Port=36000 -o KbdInteractiveAuthentication=no -o PreferredAuthentications=gssapi-with-mic,gssapi-keyex,hostbased,publickey -o PasswordAuthentication=no -o 'User="root"' -o ConnectTimeout=10 -o ControlPath=/Users/yangyu/.ansible/cp/4846fe66a5 -tt 9.134.124.159 '/bin/sh -c '"'"'/usr/bin/python /root/.ansible/tmp/ansible-tmp-1600333358.847193-42861-146017266031103/AnsiballZ_async_status.py && sleep 0'"'"''
<9.134.124.159> (0, b'\r\n{"started": 1, "invocation": {"module_args": {"jid": "48991476669.20840", "mode": "status", "_async_dir": "/root/.ansible_async"}}, "finished": 0, "ansible_job_id": "48991476669.20840"}\r\n', b'Shared connection to 9.134.124.159 closed.\r\n')
ASYNC POLL on 9.134.124.159: jid=48991476669.20840 started=1 finished=0


fatal: [9.134.124.159]: FAILED! => {
    "changed": false,
    "msg": "async task did not complete within the requested time - 10s"
}

PLAY RECAP *********************************************************************
9.134.124.159              : ok=1    changed=0    unreachable=0    failed=1    skipped=0    rescued=0    ignored=0


Process finished with exit code 2

主要分两个步骤，先将任务在被控端跑起来，再在主控端定时轮训任务状态。第一个步骤与前文所述内容差不多，多了一份 py 代码 async_wrapper.py。

task Sleep30s 入口：

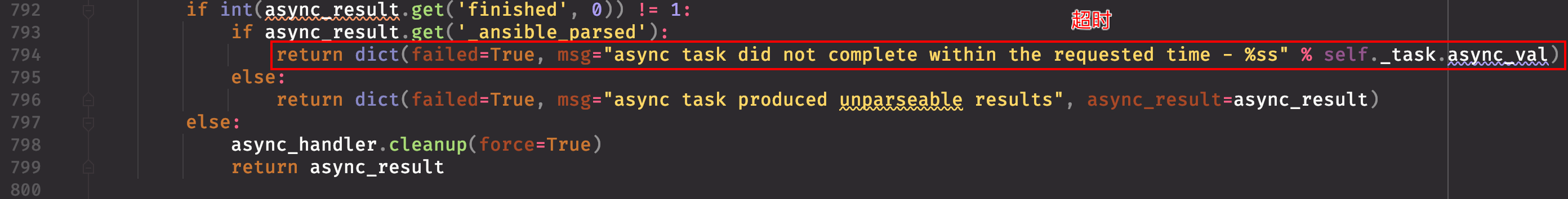

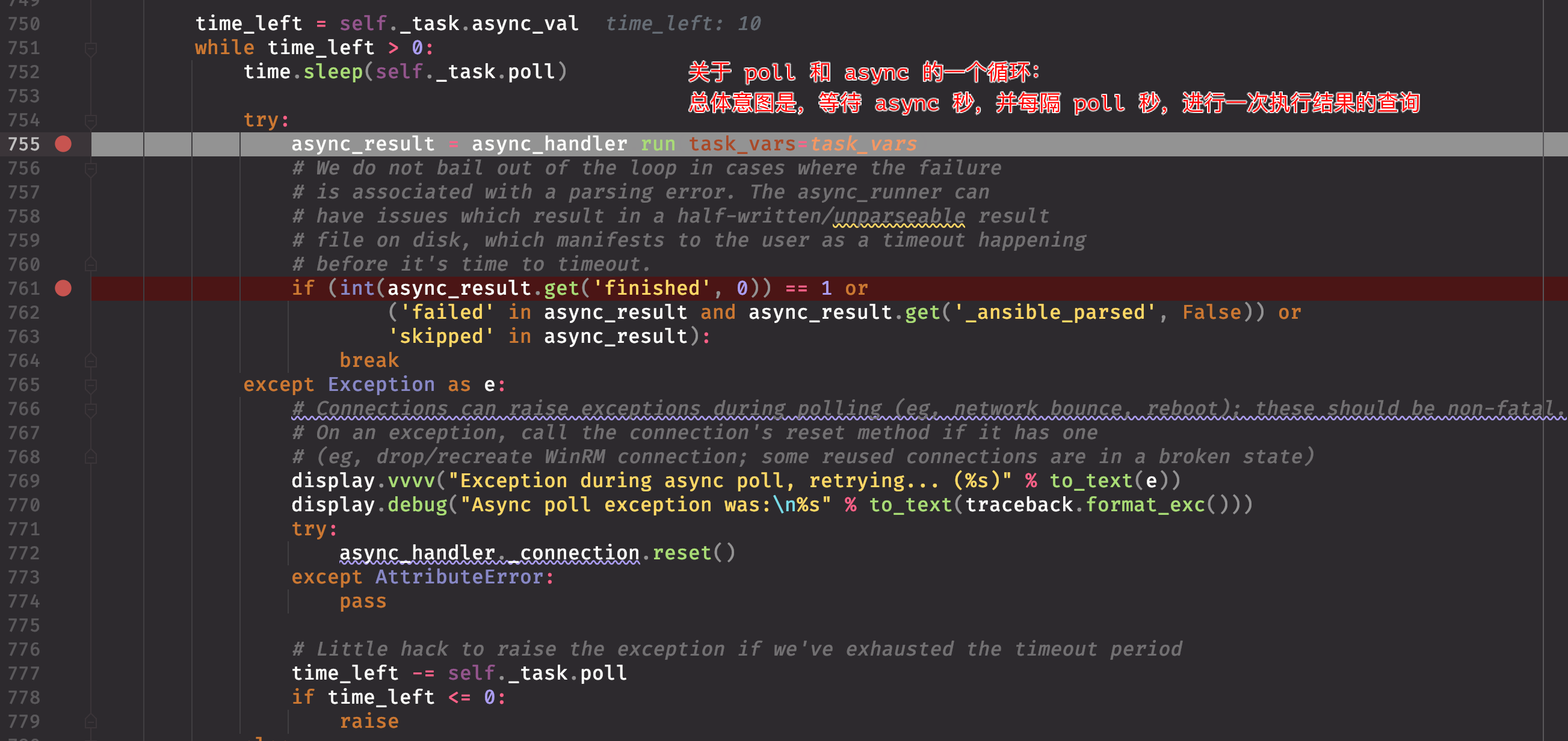

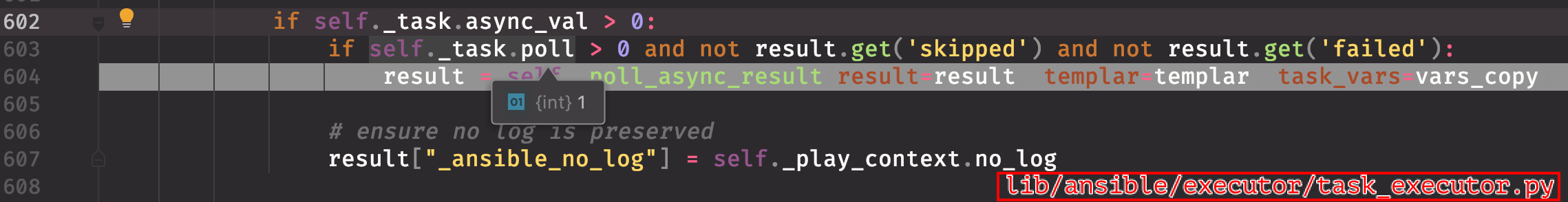

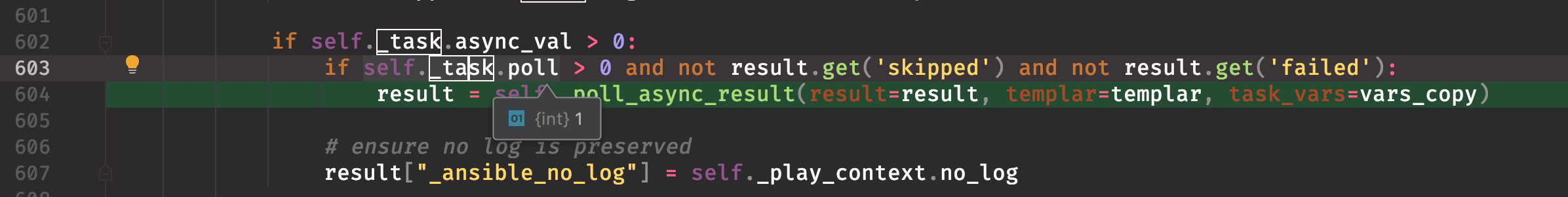

从 debug 数据可以看出，在 playbook 中设置的 async 和 poll 是作为是否开启等待与轮训任务状态的开关。

完整流程

此部分的流程只包含 Sleep30s Task，无 Gathering facts Task。

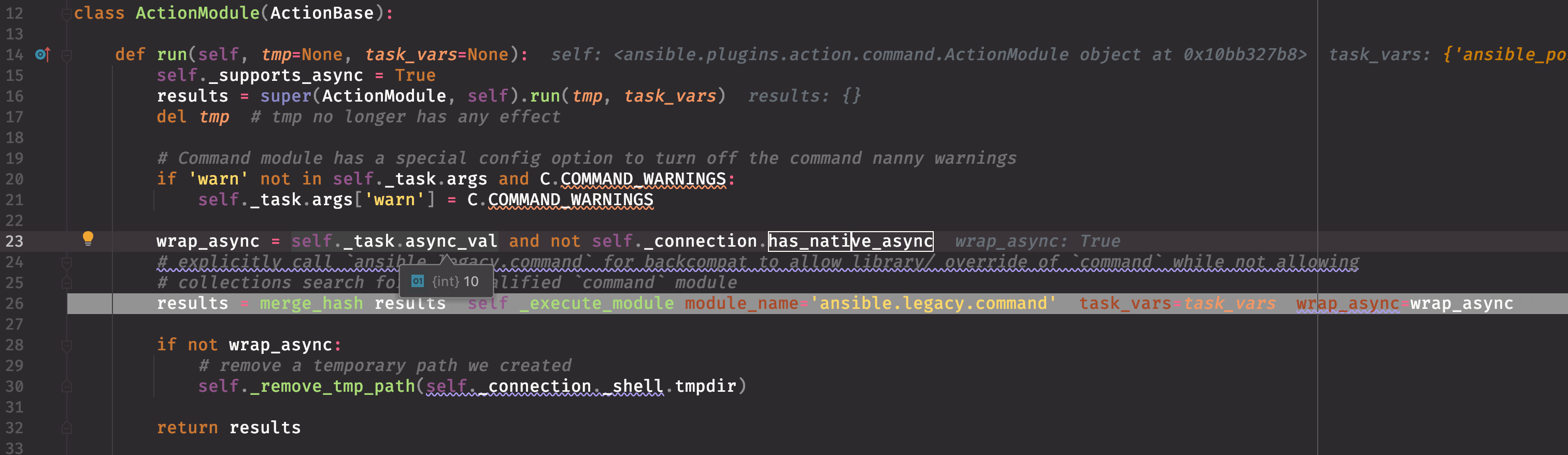

lib/ansible/plugins/action/command.py

此处通过判断 task 的 async 的值来判断是否进行 async 操作，此处为 10，即 playbook 中定义的 async 值为 10。

lib/ansible/plugins/action/__init__.py

_execute_module 方法

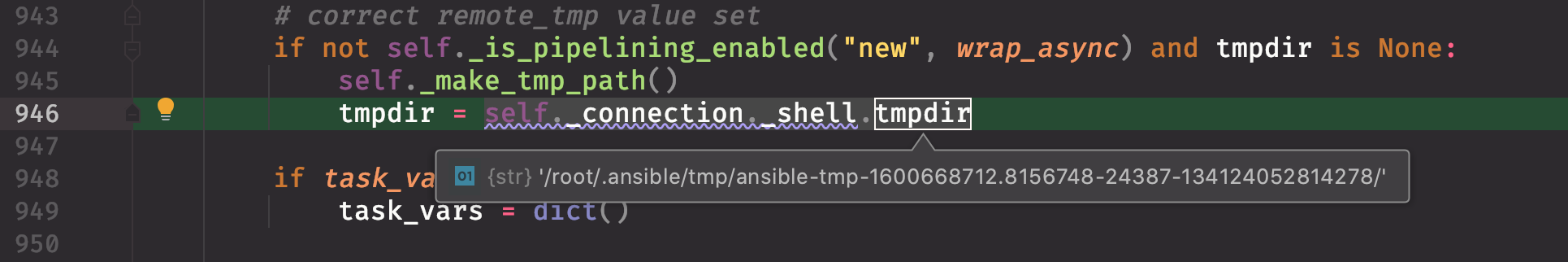

  1. self._make_tmp_path() 创建临时目录
  • 获取当前用户的家目录：echo ~root && sleep 0
  • 创建临时目录：( umask 77 && mkdir -p " echo /root/.ansible/tmp "&& mkdir " echo /root/.ansible/tmp/ansible-tmp-1600668712.8156748-24387-134124052814278 " && echo ansible-tmp-1600668712.8156748-24387-134124052814278=" echo /root/.ansible/tmp/ansible-tmp-1600668712.8156748-24387-134124052814278 " ) && sleep 0 至此，完成临时目录的创建。

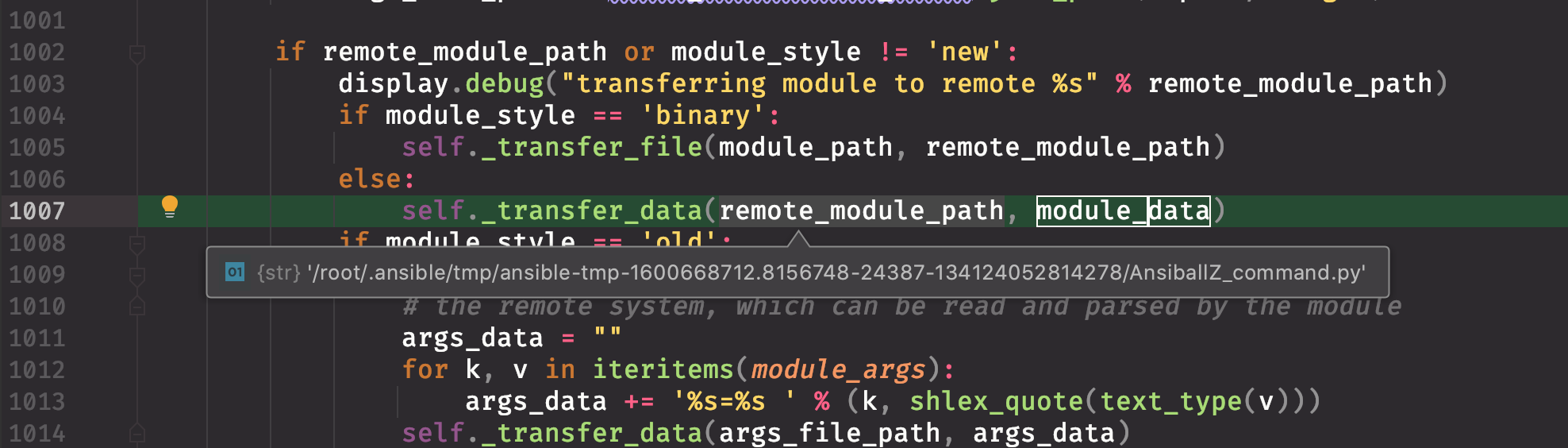

  1. 拷贝 AnsiballZ_command.py 到 /root/.ansible/tmp/ansible-tmp-1600668712.8156748-24387-134124052814278/ 目录下。其功能如前文所述 wiki: #3685

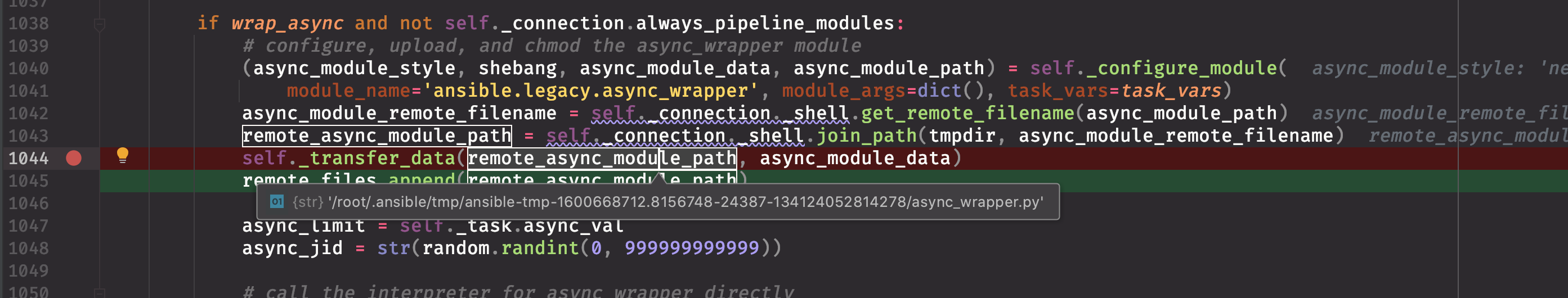

  1. 定时轮训逻辑（这是相比 #3685 多出来的流程） 这里多出来的逻辑是拷贝了一个 async_wrapper.py 文件到目标主机

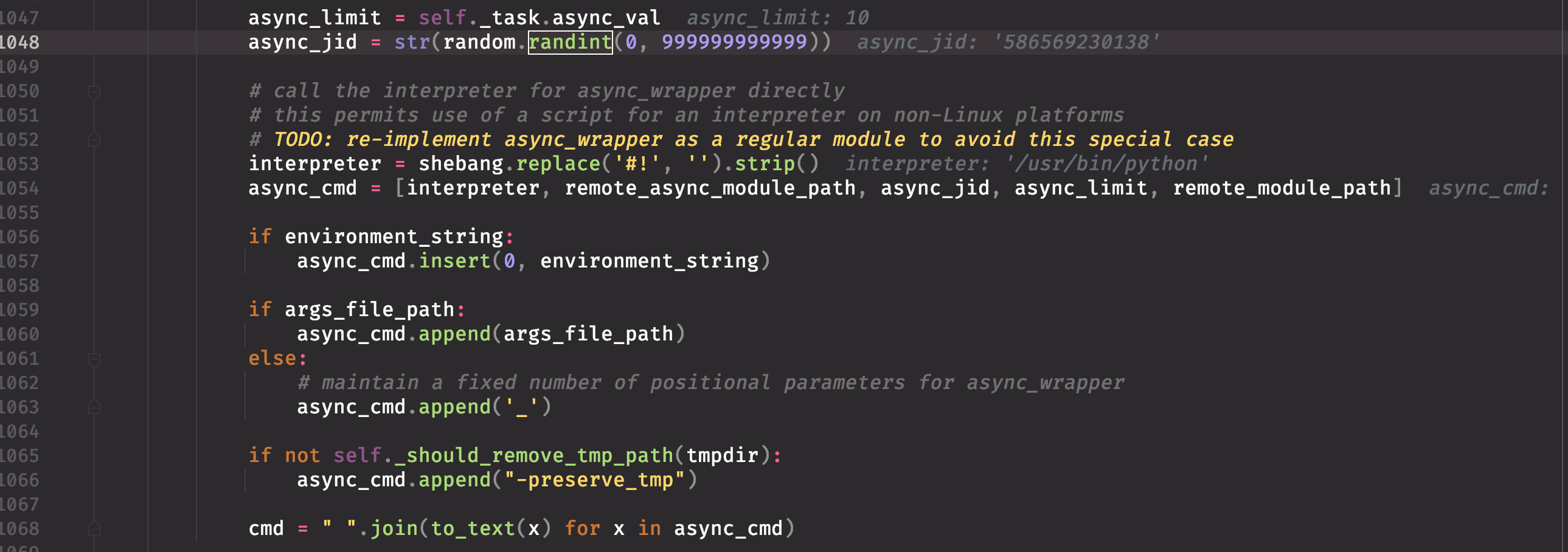

其中 async_limit 为 task 中定义的 async 值，async_jid 为随机数。

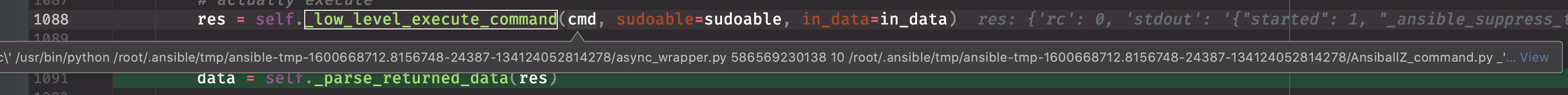

接着生成了一个 async_cmd，也就是通过 ssh 命令，调用目标主机上的 async_wrapper.py 文件的命令。最终生成的命令为：

'ANSIBLE_ASYNC_DIR=\'~/.ansible_async\' /usr/bin/python /root/.ansible/tmp/ansible-tmp-1600668712.8156748-24387-134124052814278/async_wrapper.py 586569230138 10 /root/.ansible/tmp/ansible-tmp-1600668712.8156748-24387-134124052814278/AnsiballZ_command.py _'

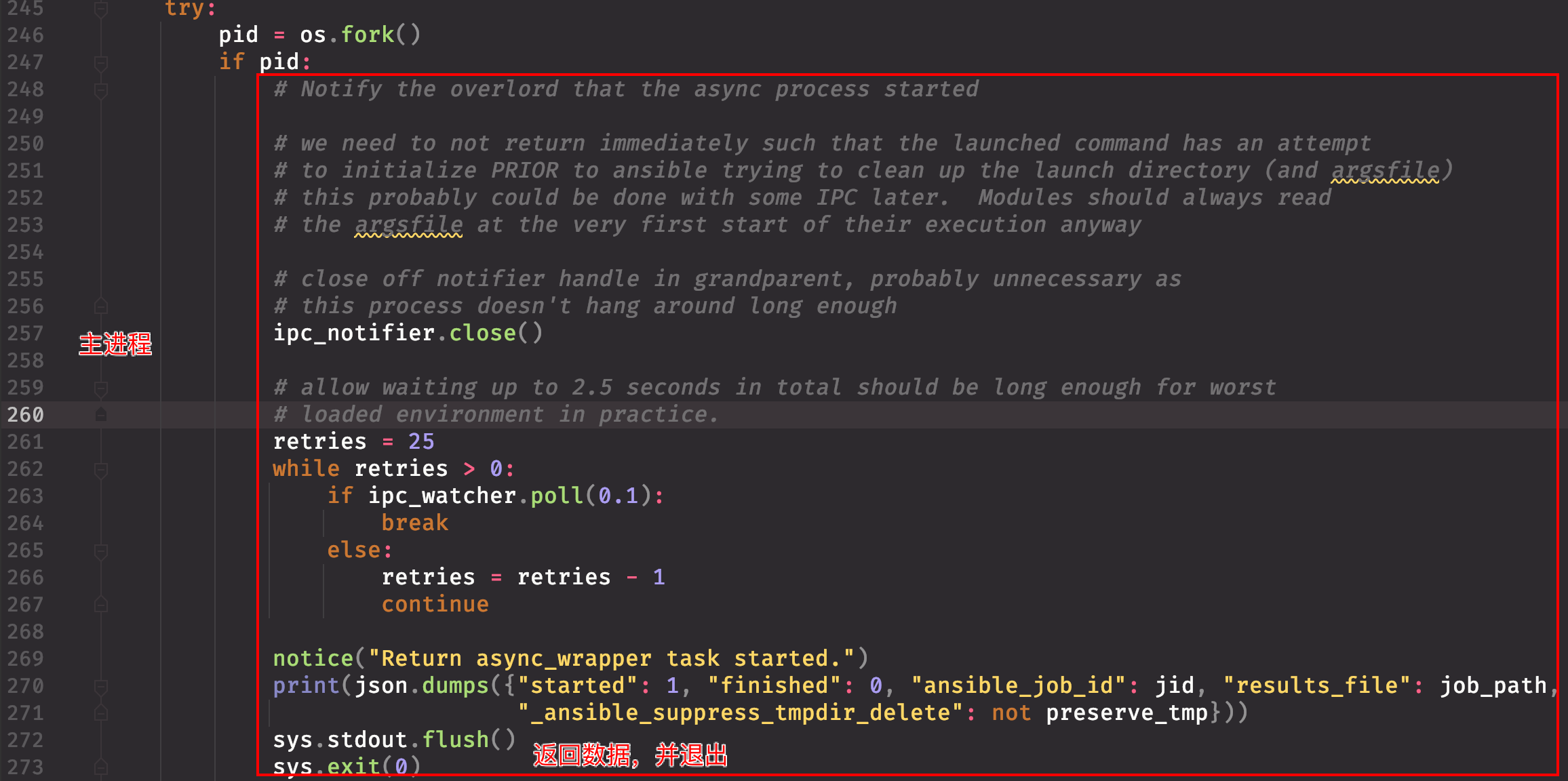

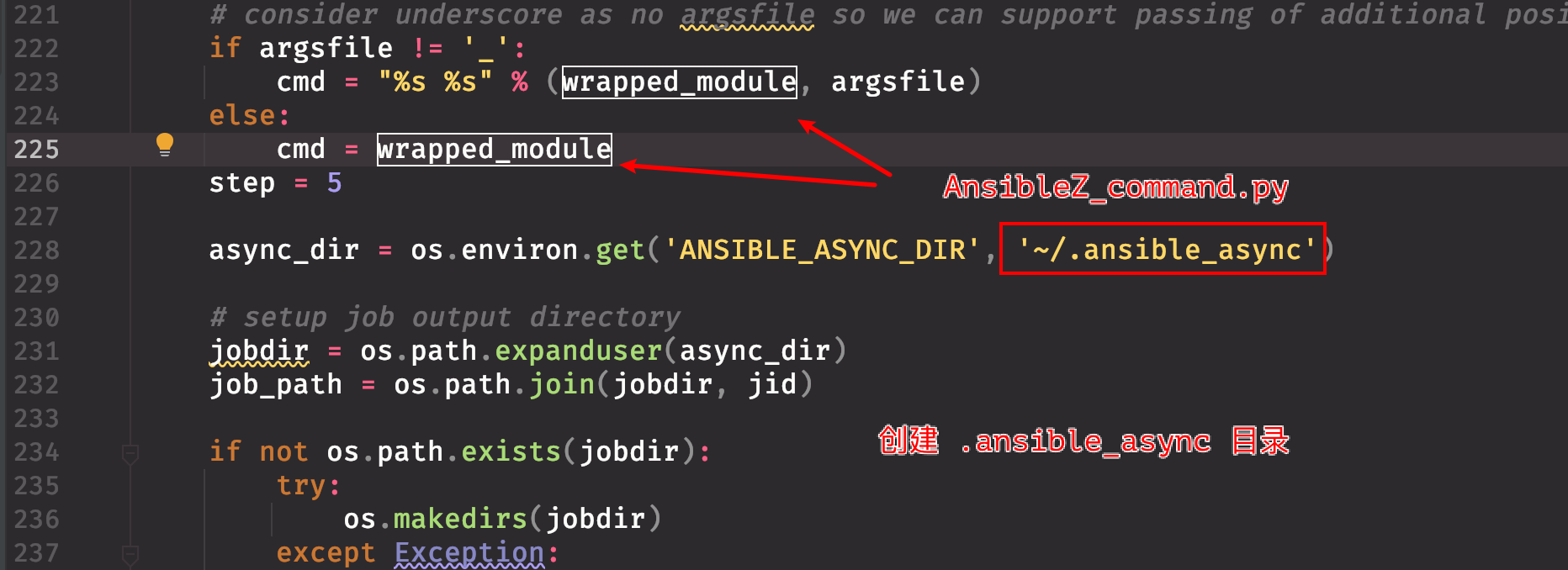

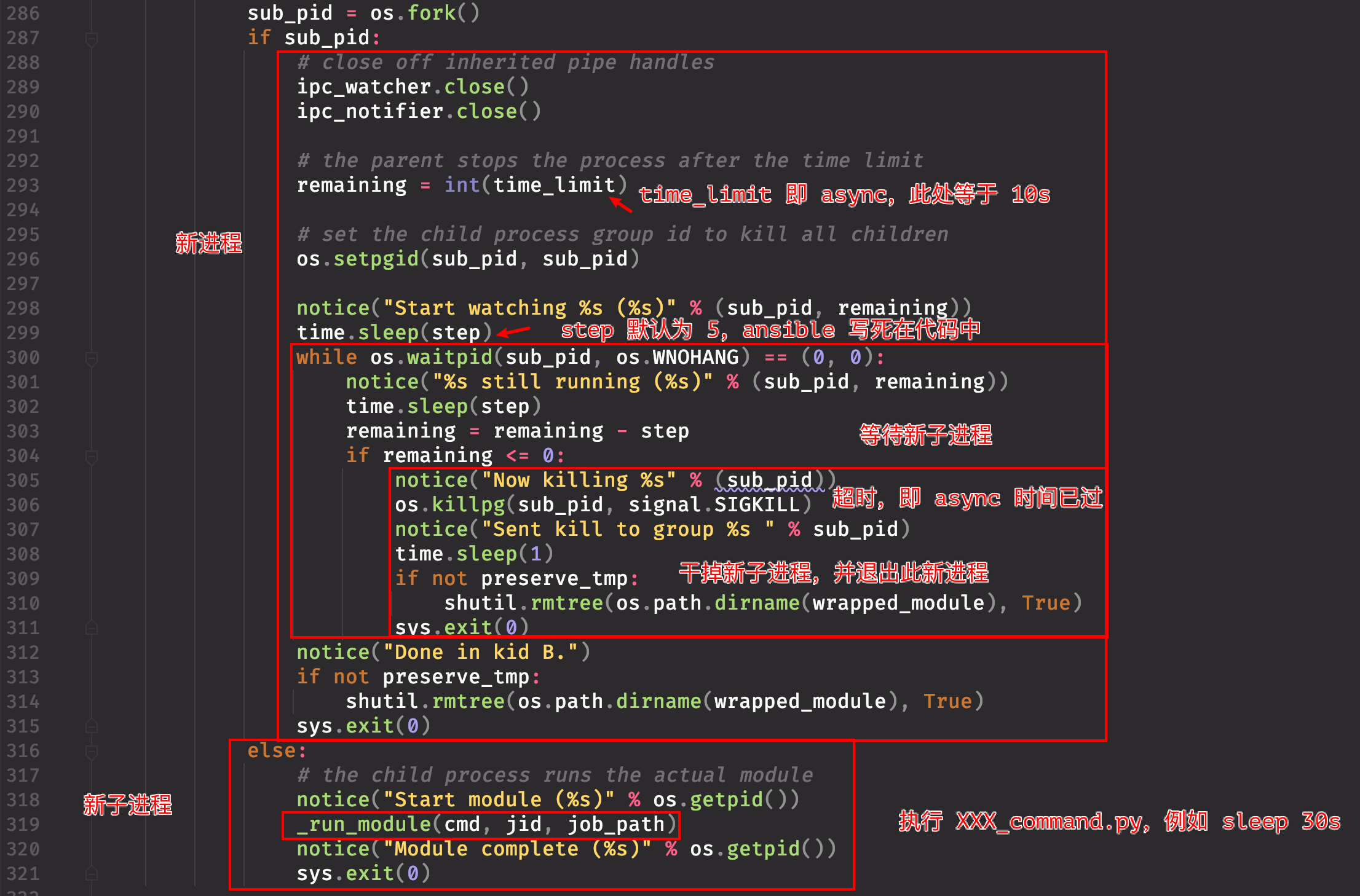

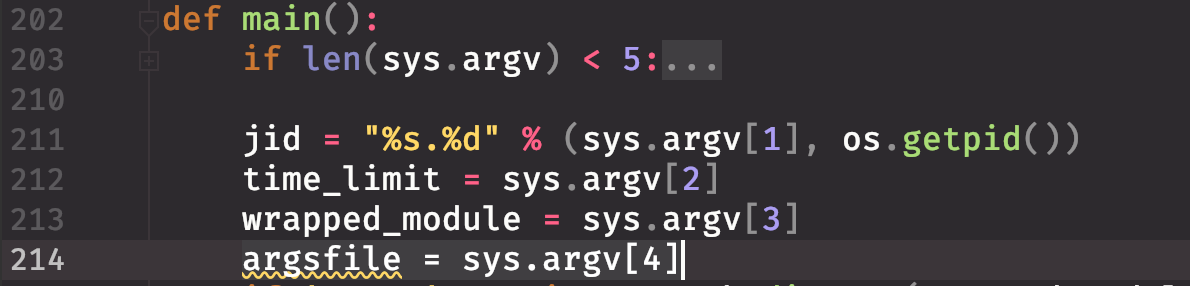

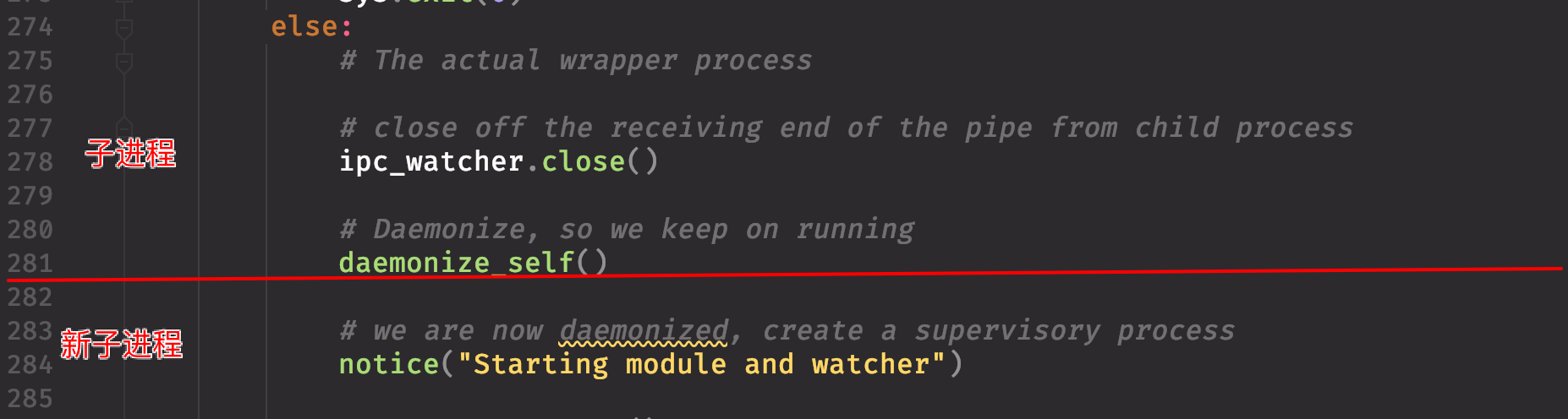

其中 async_wrapper.py 文件的内容如下：

#!/usr/bin/python
# -*- coding: utf-8 -*-
_ANSIBALLZ_WRAPPER = True # For test-module.py script to tell this is a ANSIBALLZ_WRAPPER
def _ansiballz_main():

    import os
    import os.path
    import sys
    import __main__
    scriptdir = None
    try:
        scriptdir = os.path.dirname(os.path.realpath(__main__.__file__))
    except (AttributeError, OSError):
        pass
    excludes = set(('', '.', scriptdir))
    sys.path = [p for p in sys.path if p not in excludes]
    import base64
    import runpy
    import shutil
    import tempfile
    import zipfile
    if sys.version_info < (3,):
        PY3 = False
    else:
        PY3 = True
    ZIPDATA = """omitted..."""
    def invoke_module(modlib_path, temp_path, json_params):
        z = zipfile.ZipFile(modlib_path, mode='a')
        sitecustomize = u'import sys\nsys.path.insert(0,"%s")\n' %  modlib_path
        sitecustomize = sitecustomize.encode('utf-8')
        zinfo = zipfile.ZipInfo()
        zinfo.filename = 'sitecustomize.py'
        zinfo.date_time = ( 2020, 9, 21, 6, 26, 19)
        z.writestr(zinfo, sitecustomize)
        z.close()
        sys.path.insert(0, modlib_path)
        from ansible.module_utils import basic
        basic._ANSIBLE_ARGS = json_params

        runpy.run_module(mod_name='ansible.modules.async_wrapper', init_globals=None, run_name='__main__', alter_sys=True)
        print('{"msg": "New-style module did not handle its own exit", "failed": true}')
        sys.exit(1)
    def debug(command, zipped_mod, json_params):
        basedir = os.path.join(os.path.abspath(os.path.dirname(__file__)), 'debug_dir')
        args_path = os.path.join(basedir, 'args')
        if command == 'explode':
            z = zipfile.ZipFile(zipped_mod)
            for filename in z.namelist():
                if filename.startswith('/'):
                    raise Exception('Something wrong with this module zip file: should not contain absolute paths')
                dest_filename = os.path.join(basedir, filename)
                if dest_filename.endswith(os.path.sep) and not os.path.exists(dest_filename):
                    os.makedirs(dest_filename)
                else:
                    directory = os.path.dirname(dest_filename)
                    if not os.path.exists(directory):
                        os.makedirs(directory)
                    f = open(dest_filename, 'wb')
                    f.write(z.read(filename))
                    f.close()
            f = open(args_path, 'wb')
            f.write(json_params)
            f.close()
            print('Module expanded into:')
            print('%s' % basedir)
            exitcode = 0
        elif command == 'execute':
            sys.path.insert(0, basedir)
            with open(args_path, 'rb') as f:
                json_params = f.read()
            from ansible.module_utils import basic
            basic._ANSIBLE_ARGS = json_params
            runpy.run_module(mod_name='ansible.modules.async_wrapper', init_globals=None, run_name='__main__', alter_sys=True)
            print('{"msg": "New-style module did not handle its own exit", "failed": true}')
            sys.exit(1)
        else:
            print('WARNING: Unknown debug command.  Doing nothing.')
            exitcode = 0
        return exitcode
    ANSIBALLZ_PARAMS = '{"ANSIBLE_MODULE_ARGS": {}}'
    if PY3:
        ANSIBALLZ_PARAMS = ANSIBALLZ_PARAMS.encode('utf-8')
    try:
        temp_path = tempfile.mkdtemp(prefix='ansible_ansible.legacy.async_wrapper_payload_')
        zipped_mod = os.path.join(temp_path, 'ansible_ansible.legacy.async_wrapper_payload.zip')
        with open(zipped_mod, 'wb') as modlib:
            modlib.write(base64.b64decode(ZIPDATA))
        if len(sys.argv) == 2:
            exitcode = debug(sys.argv[1], zipped_mod, ANSIBALLZ_PARAMS)
        else:
            invoke_module(zipped_mod, temp_path, ANSIBALLZ_PARAMS)
    finally:
        try:
            shutil.rmtree(temp_path)
        except (NameError, OSError):
            pass
    sys.exit(exitcode)
if __name__ == '__main__':
    _ansiballz_main()

与 AnsiballZ_command.py 中的逻辑类似，最终执行的代码来自 ZIP_DATA 中的数据，此处为 ansible.modules.async_wrapper 中的 main 函数，同理，此函数也可以在 ansible 的源代码中找到，其内容如下：

➜  tree ansible
.
├── __init__.py
├── module_utils
│   ├── __init__.py
│   ├── _text.py
│   ├── basic.py
│   ├── common
│   │   ├── __init__.py
│   │   ├── _collections_compat.py
│   │   ├── _json_compat.py
│   │   ├── _utils.py
│   │   ├── collections.py
│   │   ├── file.py
│   │   ├── parameters.py
│   │   ├── process.py
│   │   ├── sys_info.py
│   │   ├── text
│   │   │   ├── __init__.py
│   │   │   ├── converters.py
│   │   │   └── formatters.py
│   │   ├── validation.py
│   │   └── warnings.py
│   ├── compat
│   │   ├── __init__.py
│   │   ├── _selectors2.py
│   │   └── selectors.py
│   ├── distro
│   │   ├── __init__.py
│   │   └── _distro.py
│   ├── parsing
│   │   ├── __init__.py
│   │   └── convert_bool.py
│   ├── pycompat24.py
│   └── six
│       └── __init__.py
└── modules
    ├── __init__.py
    └── async_wrapper.py
8 directories, 29 files

其中 async_wrapper.py 在 ansible 中的位置为：lib/ansible/modules/async_wrapper.py。

  1. 实际执行任务。这里执行的其实是 async_wrapper.py，通过 async_wrapper.py 来调用 AnsiballZ_command.py。

此处总共分成两个步骤：

  • 加权限：chmod u+x ~/.ansible/tmp/ansible-tmp-1600668712.8156748-24387-134124052814278/ ...AnsiballZ_command.py ...async_wrapper.py && sleep 0（路径有省略）
  • 执行 async_wrapper.py：python ...async_wrapper.py 586569230138 10 ...AnsiballZ_command.py _ && sleep 0（路径有省略）

承接第3小点，此处最终执行的是 ansible/modules/async_wrapper.py 的代码逻辑

ansible/modules/async_wrapper.py

  1. 取出传入的参数，即 async、command.py 等
  1. 确定实际要执行的命令（业务命令，也就是对用户来说，相在目标机上执行的命令）
  1. 通过 os.fork() 剥离主进程与子进程，子进程执行 XXX_command.py，主进程返回结束。此处涉及大量的进程间通信（IPC），代码逻辑有点绕，但是有如下几点可以确认：
  • 父（主）进程提前返回，也就是 ssh 命令执行完毕。
  • 子进程在父进程退出后，变成孤儿进程，然后通过 daemonize_self() 函数，将自己变成一个脱离父进程的新进程。
  • 新进程会再次 fork，创建一个新子进程，并在新子进程中执行 XXX_command.py ，新进程会一直等待新子进程执行完毕。

经过上述步骤，ssh 命令已返回。

轮训执行结果

执行完上述流程后，会返回一个 result，内容如下：

{
    "started": 1,
    "finished": 0,
    "results_file": "/root/.ansible_async/732064027558.2514",
    "ansible_job_id": "732064027558.2514",
    "_ansible_parsed": true,
    "changed": true,
    "_ansible_no_log": false
}

可以看出，结果是存放在被控端的某个目录下，并在 lib/ansible/executor/task_executor.py 中，通过对 task 中的 async 和 poll 值的判断，来决定是否进行结果轮询：

轮训的流程与执行一条 ansible 命令类似，详见 #3685 ，此处不再赘述，不同的地方在于：

上传的文件是 AnsiballZ_async_status.py

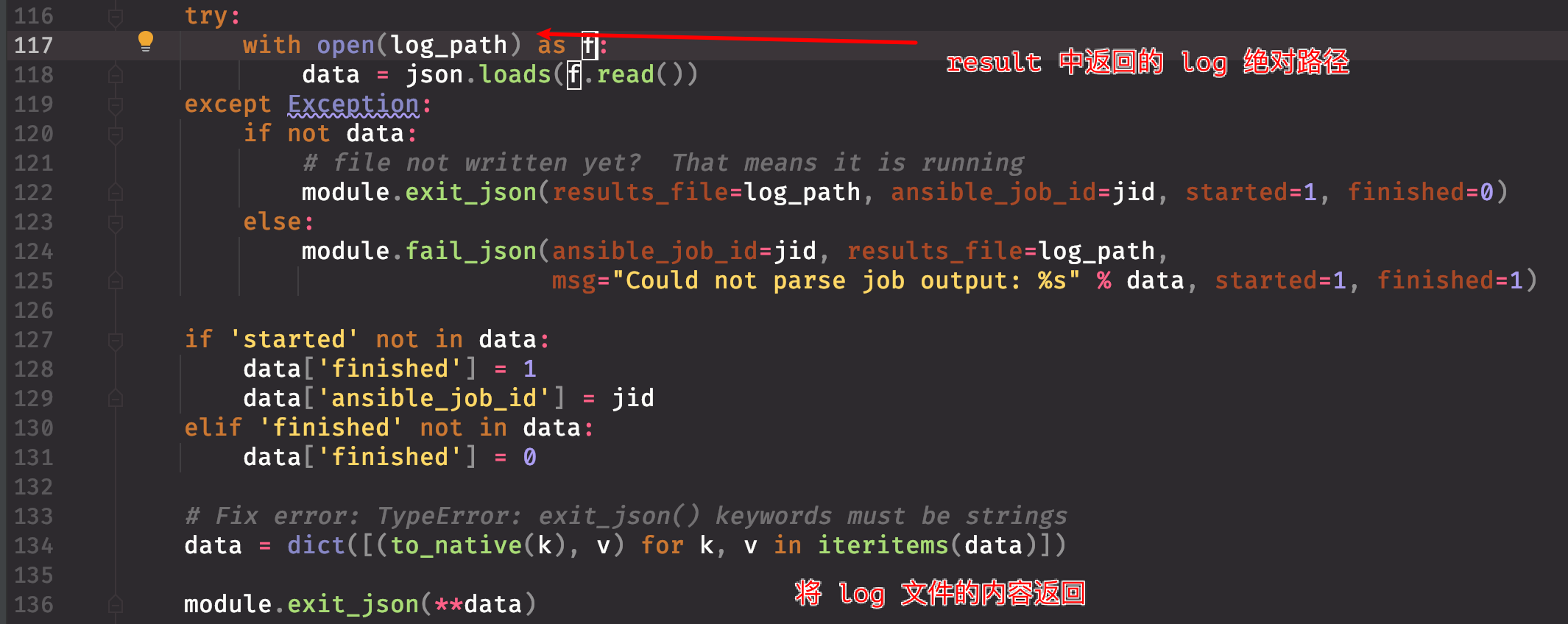

通过 ssh 开始执行的文件是 AnsiballZ_async_status.py，最终执行的是： lib/ansible/modules/async_status.py。

拿到被控机上面的 task log 后，会对 task 的执行状态进行判断：

如果在 async 秒内，没有完成 task，此 task 将直接返回超时；

不过从此处来看，当 task 执行完毕后，可能还存在主控端去被控端轮询 task 的情况。

Read more

容器镜像(4)：镜像的常用工具箱

容器镜像(4)：镜像的常用工具箱

前几篇在讲多架构镜像时已经用过 skopeo 和 crane 做镜像复制，这篇系统整理这两个工具的完整能力，同时介绍几个日常操作镜像时同样好用的工具。 一、skopeo：不依赖 Daemon 的镜像瑞士军刀 skopeo 的核心价值是绕过 Docker daemon，直接与 Registry API 交互。上一篇用它做镜像复制和离线传输，但它的能力远不止于此。 1.1 安装 # Ubuntu / Debian sudo apt install -y skopeo skopeo --version # skopeo version 1.15.1 1.2 inspect：免拉取检查镜像元数据 docker inspect 需要先把镜像拉到本地，skopeo inspect 直接向 Registry
容器镜像(3)：多架构镜像构建

容器镜像(3)：多架构镜像构建

一、什么是多架构镜像 1.1 OCI Image Index 上一篇介绍了单平台镜像的结构：一个 Manifest 指向 Config 和若干 Layer blob。多架构镜像在此之上多了一层——OCI Image Index（也叫 Manifest List），是一个轻量的索引文件，把多个单平台 Manifest 组织在一起： $ docker manifest inspect golang:1.22-alpine { "schemaVersion": 2, "mediaType": "application/vnd.oci.image.index.v1+json", "manifests&
容器镜像(2)：containerd 视角下的镜像

容器镜像(2)：containerd 视角下的镜像

一、为什么需要了解 containerd 如果你只用 docker run 跑容器，从来不关心底层，那可以不了解 containerd。但如果你在用 Kubernetes，或者想真正理解"容器运行时"是什么，containerd 是绕不开的。 事实上，当你执行 docker run 的时候，containerd 早就在后台悄悄工作了——Docker 从 1.11 版本开始，就把核心运行时剥离出来交给 containerd 负责。 1.1 Docker 的架构演变 早期的 Docker（1.10 及之前）是一个"大一统"的单体程序：一个 dockerd
