MyBatis中的#与$符号的区别
Mybatis中有很多可以学习的地方，#和$是两种常见的值替换方式，今天站在源码的角度去分析其解析过程。
关键源码
因为这段代码功能单一，对后续的流程影响不大，搞清楚这段代码的作用，基本上#{}和${}的区别，在源代码上已经是清楚了。了解了这段代码之后，再进行后续的解析流程，就不会陷入这段代码的逻辑中，将整个视野投入到流程当中。
位置：GenericTokenParser.java --> parse()
private final String openToken;
private final String closeToken;
// 当匹配到#{}或${}后，对其中的文本进行的操作。
private final TokenHandler handler;
public GenericTokenParser(String openToken, String closeToken, TokenHandler handler) {
this.openToken = openToken;
this.closeToken = closeToken;
this.handler = handler;
}
首先它有3个成员变量，可以理解成：当匹配到已openToken开头，closeToken结尾的字符串后，对其中的字符串执行handler.handleToken()方法。
这个handler就是一个典型的策略模式。它是一个只含有``函数的接口：
public interface TokenHandler {
String handleToken(String content);
}
也就是说#{}和${}的处理逻辑都是封装到handleToken中。
寻找是否含有#{}和${}的逻辑如下：
public class GenericTokenParser {
public String parse(String text) {
if (text == null || text.isEmpty()) {
return "";
}
// search open token
int start = text.indexOf(openToken, 0);
if (start == -1) {
return text;
}
char[] src = text.toCharArray();
int offset = 0;
final StringBuilder builder = new StringBuilder();
StringBuilder expression = null;
while (start > -1) {
if (start > 0 && src[start - 1] == '\\') {
// this open token is escaped. remove the backslash and continue.
builder.append(src, offset, start - offset - 1).append(openToken);
offset = start + openToken.length();
} else {
// found open token. let's search close token.
if (expression == null) {
expression = new StringBuilder();
} else {
expression.setLength(0);
}
builder.append(src, offset, start - offset);
offset = start + openToken.length();
int end = text.indexOf(closeToken, offset);
while (end > -1) {
if (end > offset && src[end - 1] == '\\') {
// this close token is escaped. remove the backslash and continue.
expression.append(src, offset, end - offset - 1).append(closeToken);
offset = end + closeToken.length();
end = text.indexOf(closeToken, offset);
} else {
expression.append(src, offset, end - offset);
offset = end + closeToken.length();
break;
}
}
if (end == -1) {
// close token was not found.
builder.append(src, start, src.length - start);
offset = src.length;
} else {
builder.append(handler.handleToken(expression.toString()));
offset = end + closeToken.length();
}
}
start = text.indexOf(openToken, offset);
}
if (offset < src.length) {
builder.append(src, offset, src.length - offset);
}
return builder.toString();
}
}

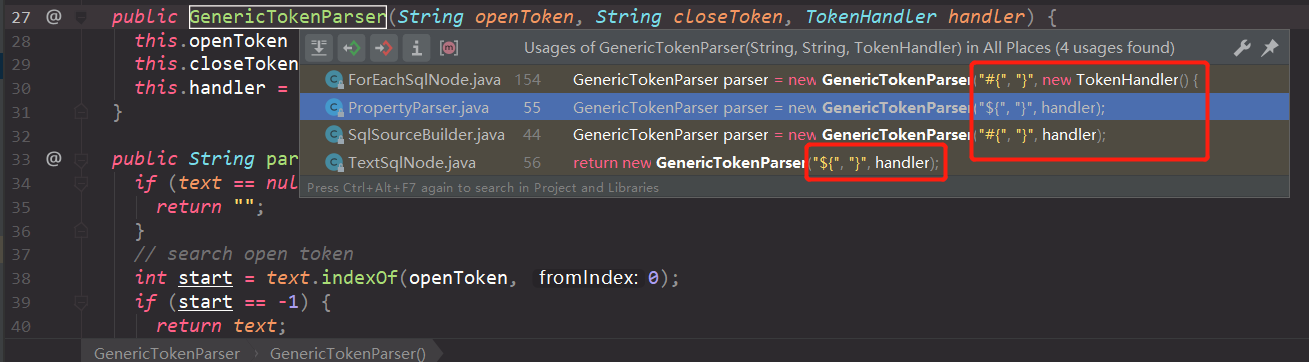

用到GenericTokenParser的地方如下图所示：
仔细看一看上面的图片，会有一个疑问，那就是为什么#{}和${}分别有2种不同的解析方法？这个可以在后面的分析中得出答案。这里直接给出我们平常所认为的那种处理方式的源代码，即#变成？，然后$直接变成相应的值，如下：
#{}的处理方式
位置：SqlSourceBuidler.java --> ParameterMappingTokenHandler
@Override
public String handleToken(String content) {
parameterMappings.add(buildParameterMapping(content));
return "?";
}
${}的处理方式
位置：PropertyParser.java --> VariableTokenHandler
@Override
public String handleToken(String content) {
if (variables != null) {
String key = content;
if (enableDefaultValue) {
final int separatorIndex = content.indexOf(defaultValueSeparator);
String defaultValue = null;
if (separatorIndex >= 0) {
key = content.substring(0, separatorIndex);
defaultValue = content.substring(separatorIndex + defaultValueSeparator.length());
}
if (defaultValue != null) {
return variables.getProperty(key, defaultValue);
}
}
if (variables.containsKey(key)) {
return variables.getProperty(key);
}
}
return "${" + content + "}";
}
从上面的代码来看，基本上的问题已经解决了。下面是MyBatis对XML中SQL语句的解析流程的分析。
示例代码
public static void main(String[] args) throws IOException {
SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(Resources.getResourceAsStream("mybatis-config.xml"));
SqlSession session = sqlSessionFactory.openSession();
BizDriverMapper mapper = session.getMapper(BizDriverMapper.class);
List<BizDriver> list = mapper.getByNameOrNumber("hello");
System.out.println(list.size());
}
构建SqlSessionFactory阶段
SqlSessionFactoryBuilder.java --> build(InputStream, String, Properties)
public SqlSessionFactory build(InputStream inputStream, String environment, Properties properties) {
try {
XMLConfigBuilder parser = new XMLConfigBuilder(inputStream, environment, properties);
return build(parser.parse());
}
...
}
XMLConfigBuilder.java --> parse()
public Configuration parse() {
if (parsed) {
throw new BuilderException("Each XMLConfigBuilder can only be used once.");
}
parsed = true;
parseConfiguration(parser.evalNode("/configuration"));
return configuration;
}
XMLConfigBuilder.java --> parseConfiguration()
private void parseConfiguration(XNode root) {
try {
//issue #117 read properties first
propertiesElement(root.evalNode("properties"));
Properties settings = settingsAsProperties(root.evalNode("settings"));
loadCustomVfs(settings);
typeAliasesElement(root.evalNode("typeAliases"));
pluginElement(root.evalNode("plugins"));
objectFactoryElement(root.evalNode("objectFactory"));
objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
reflectorFactoryElement(root.evalNode("reflectorFactory"));
settingsElement(settings);
// read it after objectFactory and objectWrapperFactory issue #631
environmentsElement(root.evalNode("environments"));
databaseIdProviderElement(root.evalNode("databaseIdProvider"));
typeHandlerElement(root.evalNode("typeHandlers"));
mapperElement(root.evalNode("mappers"));
} catch (Exception e) {
throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
}
}
XMLConfigBuilder.java --> mapperElement()
private void mapperElement(XNode parent) throws Exception {
if (parent != null) {
for (XNode child : parent.getChildren()) {
if ("package".equals(child.getName())) {
String mapperPackage = child.getStringAttribute("name");
configuration.addMappers(mapperPackage);
} else {
String resource = child.getStringAttribute("resource");
String url = child.getStringAttribute("url");
String mapperClass = child.getStringAttribute("class");
if (resource != null && url == null && mapperClass == null) {
ErrorContext.instance().resource(resource);
InputStream inputStream = Resources.getResourceAsStream(resource);
XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, resource, configuration.getSqlFragments());
mapperParser.parse();
} else if (resource == null && url != null && mapperClass == null) {
ErrorContext.instance().resource(url);
InputStream inputStream = Resources.getUrlAsStream(url);
XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, url, configuration.getSqlFragments());
mapperParser.parse();
} else if (resource == null && url == null && mapperClass != null) {
Class<?> mapperInterface = Resources.classForName(mapperClass);
configuration.addMapper(mapperInterface);
} else {
throw new BuilderException("A mapper element may only specify a url, resource or class, but not more than one.");
}
}
}
}
}
XMLMapperBuilder.java --> parse()
public void parse() {
if (!configuration.isResourceLoaded(resource)) {
configurationElement(parser.evalNode("/mapper"));
configuration.addLoadedResource(resource);
bindMapperForNamespace();
}
parsePendingResultMaps();
parsePendingCacheRefs();
parsePendingStatements();
}
XMLMapperBuilder.java --> configurationElement()
private void configurationElement(XNode context) {
try {
String namespace = context.getStringAttribute("namespace");
if (namespace == null || namespace.equals("")) {
throw new BuilderException("Mapper's namespace cannot be empty");
}
builderAssistant.setCurrentNamespace(namespace);
cacheRefElement(context.evalNode("cache-ref"));
cacheElement(context.evalNode("cache"));
parameterMapElement(context.evalNodes("/mapper/parameterMap"));
resultMapElements(context.evalNodes("/mapper/resultMap"));
sqlElement(context.evalNodes("/mapper/sql"));
// 处理sql的入口
buildStatementFromContext(context.evalNodes("select|insert|update|delete"));
} catch (Exception e) {
throw new BuilderException("Error parsing Mapper XML. The XML location is '" + resource + "'. Cause: " + e, e);
}
}
处理sql的入口
private void buildStatementFromContext(List<XNode> list) {
if (configuration.getDatabaseId() != null) {
buildStatementFromContext(list, configuration.getDatabaseId());
}
buildStatementFromContext(list, null);
}
private void buildStatementFromContext(List<XNode> list, String requiredDatabaseId) {
for (XNode context : list) {
final XMLStatementBuilder statementParser = new XMLStatementBuilder(configuration, builderAssistant, context, requiredDatabaseId);
try {
statementParser.parseStatementNode();
} catch (IncompleteElementException e) {
configuration.addIncompleteStatement(statementParser);
}
}
}
XMLStatementBuilder.java --> parseStatementNode()
public void parseStatementNode() {
String id = context.getStringAttribute("id");
String databaseId = context.getStringAttribute("databaseId");
if (!databaseIdMatchesCurrent(id, databaseId, this.requiredDatabaseId)) {
return;
}
Integer fetchSize = context.getIntAttribute("fetchSize");
Integer timeout = context.getIntAttribute("timeout");
String parameterMap = context.getStringAttribute("parameterMap");
String parameterType = context.getStringAttribute("parameterType");
Class<?> parameterTypeClass = resolveClass(parameterType);
String resultMap = context.getStringAttribute("resultMap");
String resultType = context.getStringAttribute("resultType");
String lang = context.getStringAttribute("lang");
LanguageDriver langDriver = getLanguageDriver(lang);
Class<?> resultTypeClass = resolveClass(resultType);
String resultSetType = context.getStringAttribute("resultSetType");
StatementType statementType = StatementType.valueOf(context.getStringAttribute("statementType", StatementType.PREPARED.toString()));
ResultSetType resultSetTypeEnum = resolveResultSetType(resultSetType);
String nodeName = context.getNode().getNodeName();
SqlCommandType sqlCommandType = SqlCommandType.valueOf(nodeName.toUpperCase(Locale.ENGLISH));
boolean isSelect = sqlCommandType == SqlCommandType.SELECT;
boolean flushCache = context.getBooleanAttribute("flushCache", !isSelect);
boolean useCache = context.getBooleanAttribute("useCache", isSelect);
boolean resultOrdered = context.getBooleanAttribute("resultOrdered", false);
// Include Fragments before parsing
XMLIncludeTransformer includeParser = new XMLIncludeTransformer(configuration, builderAssistant);
includeParser.applyIncludes(context.getNode());
// Parse selectKey after includes and remove them.
processSelectKeyNodes(id, parameterTypeClass, langDriver);
// Parse the SQL (pre: <selectKey> and <include> were parsed and removed)
SqlSource sqlSource = langDriver.createSqlSource(configuration, context, parameterTypeClass);
String resultSets = context.getStringAttribute("resultSets");
String keyProperty = context.getStringAttribute("keyProperty");
String keyColumn = context.getStringAttribute("keyColumn");
KeyGenerator keyGenerator;
String keyStatementId = id + SelectKeyGenerator.SELECT_KEY_SUFFIX;
keyStatementId = builderAssistant.applyCurrentNamespace(keyStatementId, true);
if (configuration.hasKeyGenerator(keyStatementId)) {
keyGenerator = configuration.getKeyGenerator(keyStatementId);
} else {
keyGenerator = context.getBooleanAttribute("useGeneratedKeys",
configuration.isUseGeneratedKeys() && SqlCommandType.INSERT.equals(sqlCommandType))
? Jdbc3KeyGenerator.INSTANCE : NoKeyGenerator.INSTANCE;
}
builderAssistant.addMappedStatement(id, sqlSource, statementType, sqlCommandType,
fetchSize, timeout, parameterMap, parameterTypeClass, resultMap, resultTypeClass,
resultSetTypeEnum, flushCache, useCache, resultOrdered,
keyGenerator, keyProperty, keyColumn, databaseId, langDriver, resultSets);
}
其中createSqlSource()的对象langDriver来自XMLLanguageDriver
XMLLanguageDriver.java --> createSqlSource()
@Override
public SqlSource createSqlSource(Configuration configuration, XNode script, Class<?> parameterType) {
XMLScriptBuilder builder = new XMLScriptBuilder(configuration, script, parameterType);
return builder.parseScriptNode();
}
关键步骤：XMLScriptBuilder.java --> parseScriptNode()
这里面的每一行代码都可以仔细去看、并理解它的意思
public SqlSource parseScriptNode() {
// 判定是否含有${},如果有，isDynamic-->true
MixedSqlNode rootSqlNode = parseDynamicTags(context);
SqlSource sqlSource = null;
if (isDynamic) {
// 有${}不做任何处理
sqlSource = new DynamicSqlSource(configuration, rootSqlNode);
} else {
// 没有${}，把#{}都替换成?
sqlSource = new RawSqlSource(configuration, rootSqlNode, parameterType);
}
return sqlSource;
}
通过上面的分析可知，会有两种情况，即是否为动态。一条语句开始的时候都被包装成MixedSqlNode，然后再通过判断是否为动态，将其封装成DynamicSqlSource和RawSqlSource。这两种的含义是：DynamicSqlSource有${}不做任何处理，RawSqlSource没有${}，把#{}都替换成?。是如何分配的呢？是通过GenericTokenParser来寻找$符号，然后在handler中，将isDynamic标记为true，代码如下：
protected MixedSqlNode parseDynamicTags(XNode node) {
List<SqlNode> contents = new ArrayList<SqlNode>();
NodeList children = node.getNode().getChildNodes();
for (int i = 0; i < children.getLength(); i++) {
XNode child = node.newXNode(children.item(i));
if (child.getNode().getNodeType() == Node.CDATA_SECTION_NODE || child.getNode().getNodeType() == Node.TEXT_NODE) {
String data = child.getStringBody("");
TextSqlNode textSqlNode = new TextSqlNode(data);
// isDynamic()中封装了对GenericTokenParser的调用
if (textSqlNode.isDynamic()) {
contents.add(textSqlNode);
isDynamic = true;
} else {
contents.add(new StaticTextSqlNode(data));
}
} else if (child.getNode().getNodeType() == Node.ELEMENT_NODE) { // issue #628
String nodeName = child.getNode().getNodeName();
XMLScriptBuilder.NodeHandler handler = nodeHandlerMap.get(nodeName);
if (handler == null) {
throw new BuilderException("Unknown element <" + nodeName + "> in SQL statement.");
}
handler.handleNode(child, contents);
isDynamic = true;
}
}
return new MixedSqlNode(contents);
}
isDynamic()中封装了对GenericTokenParser的调用
public boolean isDynamic() {
DynamicCheckerTokenParser checker = new DynamicCheckerTokenParser();
GenericTokenParser parser = createParser(checker);
parser.parse(text);
return checker.isDynamic();
}
private static class DynamicCheckerTokenParser implements TokenHandler {
private boolean isDynamic;
public DynamicCheckerTokenParser() {
// Prevent Synthetic Access
}
public boolean isDynamic() {
return isDynamic;
}
// 将本对象的变量置为true
@Override
public String handleToken(String content) {
this.isDynamic = true;
return null;
}
}
在处理RawSqlSource时的初始化过程如下：
public RawSqlSource(Configuration configuration, SqlNode rootSqlNode, Class<?> parameterType) {
this(configuration, getSql(configuration, rootSqlNode), parameterType);
}
public RawSqlSource(Configuration configuration, String sql, Class<?> parameterType) {
SqlSourceBuilder sqlSourceParser = new SqlSourceBuilder(configuration);
Class<?> clazz = parameterType == null ? Object.class : parameterType;
// 所有的#{}都将被替换成？
sqlSource = sqlSourceParser.parse(sql, clazz, new HashMap<String, Object>());
}
// SqlSourceBuilder.java
public SqlSource parse(String originalSql, Class<?> parameterType, Map<String, Object> additionalParameters) {
ParameterMappingTokenHandler handler = new ParameterMappingTokenHandler(configuration, parameterType, additionalParameters);
GenericTokenParser parser = new GenericTokenParser("#{", "}", handler);
String sql = parser.parse(originalSql);
return new StaticSqlSource(configuration, sql, handler.getParameterMappings());
}
其中ParameterMappingTokenHandler的handleToken()方法，也就是匹配成功后的回调，实现如下：
@Override
public String handleToken(String content) {
parameterMappings.add(buildParameterMapping(content));
return "?";
}
在处理RawSqlSource时，没有这方面的处理，因此在这里就不贴其代码流程。反思：因为这是初始化阶段，可以理解成开机启动脚本，所以#{}的值是确定的，也就是说要变成？，而${}的值在这个阶段就是未知的，因为还没有具体的SQL语句要生成，直接替换的数据还不确定，所以含有${}的语句，在初始化阶段是先不处理。
参考：
- https://blog.csdn.net/xu1916659422/article/details/77918175 在此基础上进行了校正，并加入了自己的理解
- http://www.mybatis.org/mybatis-3/zh/getting-started.html 进行基本的配置
