WebSocket多实例部署时的一种解决方案

需要用到k8s进行扩展，在变更容器数量的时候，希望达到不改动代码。

遇到的问题

1. Client与哪一个WS服务建立连接是不知道的
2. 当需要发送WS消息时，使用URL发送给所有的WS模块不可取（一旦容器数量改变，还需要修改代码，即增加新的URL）

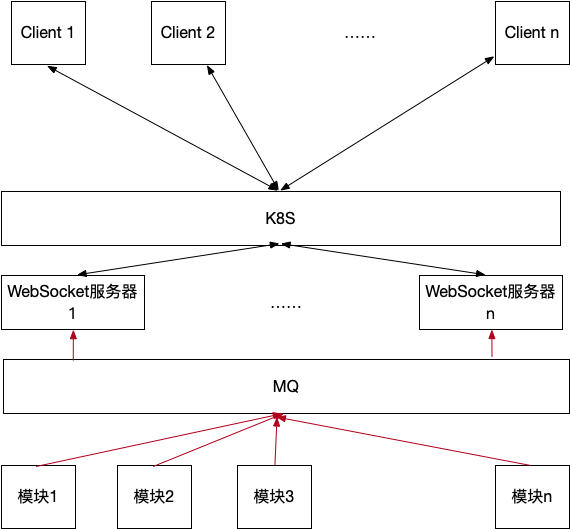

架构图

代码

建立连接部分

@ServerEndpoint(value = "/ws/{role}/{token}", configurator = EndpointConf.class)
@Component
@Slf4j
public class WsController {

    private static final String PARAM_TOKEN = "token";
    private static final String PARAM_ROLE = "role";
    private static final Set<String> ROLE_SET = new HashSet<>(
            Arrays.asList(AccountType.DRIVER.name().toLowerCase(), AccountType.PASSENGER.name().toLowerCase())
    );

    @Autowired
    private WsService wsService;

    @OnOpen
    public void onOpen(@PathParam(PARAM_ROLE) String role,
                       @PathParam(PARAM_TOKEN) String token, Session session) throws IOException {
        if (!ROLE_SET.contains(role)) {
            // 登陆类型不正确
            log.warn("token:{} login role error, role:{}", token, role);
            wsService.sendMessage(session, wsService.authFailMsg());
            session.close();
            return;
        }

        int userId = wsService.getUserIdByToken(role, token);
        if (userId == -1) {
            // 根据token找不到userId
            log.warn("token:{} login error, you are offline", token);
            wsService.sessionMap.remove(token);
            wsService.sendMessage(session, wsService.authFailMsg());
            session.close();
            return;
        }
        log.info("【{}】, token : {} open websocket connect", wsService.showInfoAboutToken(token), token);

        // 删除此token已有session
        Session oldSession = wsService.sessionMap.get(token);
        if (oldSession != null) {
            wsService.sessionMap.remove(token);
            wsService.sendMessage(oldSession, wsService.duplicateLoginMsg());
            oldSession.close();
        }
        wsService.sessionMap.put(token, session);
    }

    @OnClose
    public void onClose(@PathParam(PARAM_ROLE) String role,
                        @PathParam(PARAM_TOKEN) String token, Session session) {
        log.info("close connection. 【{}】, token: {}", wsService.showInfoAboutToken(token), token);
        wsService.sessionMap.remove(token);
        wsService.sendMessage(session, wsService.authFailMsg());
    }

    @OnError
    public void onError(@PathParam(PARAM_ROLE) String role,
                        @PathParam(PARAM_TOKEN) String token, Session session, Throwable error) {
        log.error("【{}】, token : {}, sessionId: {}, websocket error: {}", wsService.showInfoAboutToken(token), token, session.getId(), error);
    }

    @OnMessage
    public void onMessage(@PathParam(PARAM_ROLE) String role,
                          @PathParam(PARAM_TOKEN) String token, String message, Session session) throws IOException {
        log.info("receive from 【{}】, token : {}, message: {}",wsService.showInfoAboutToken(token), token, message);
        if (!ROLE_SET.contains(role)) {
            // 登陆类型不正确
            wsService.sendMessage(session, wsService.authFailMsg());
            session.close();
        }
        //司机心跳缓存
        if(role.equals(AccountType.DRIVER.name().toLowerCase())){
            wsService.updateHeartBeat(token);
        }
        wsService.actionHandle(session, message);
    }
}

接收各个模块发送WS的MQ消息

@Slf4j
public class WsMqMsgListener implements MessageListener {

    @Autowired
    private WsService wsService;

    @Override
    public Action consume(Message message, ConsumeContext context) {
        log.info("receive tag:{}, body:{}", message.getTag(), new String(message.getBody()));
        try {
            //消息体执行内容
            String bodyStr = new String(message.getBody());

            if (StringUtils.isEmpty(bodyStr))
                return Action.CommitMessage;

            JSONObject body = JSONObject.parseObject(bodyStr);
            log.info("got a websocket mq msg");
            WebSocketMqMsg.Body wsMqBody = JSON.toJavaObject(body, WebSocketMqMsg.Body.class);
            wsService.sendMessage(wsMqBody);

            return Action.CommitMessage;
        } catch (Exception e) {
            e.printStackTrace();
            log.error("消费MQ消息失败，原因是：{}", e.getMessage());
            //消费失败
            return Action.ReconsumeLater;
        }
    }
}

收到各个模块的MQ消息后，提取出发送对象、发送内容，然后进行发送。如果没有找到对应客户端的连接，那么将抛弃掉该WS消息。

public Map<String, Session> sessionMap = new ConcurrentHashMap<>();
public void sendMessage(WebSocketMqMsg.Body message) {
    if (message.getIds().size() > 0) {
        for (Integer id : message.getIds()) {
            cachedThreadPool.execute(() -> {
                int maxIdx = message.getRole().equals(AccountType.PASSENGER.name()) ? 2 : 1;
                for (int i = 1; i <= maxIdx; i++) {

                    String key = String.format(Constants.CACHE_USER_TOKEN_LOGIN_PREFIX,
                            message.getRole(),
                            LoginType.valueOf((short) i), id);
                    log.info("key is {}", key);

                    String token = cacheService.getVal(key);
                    log.info("token is {}", token == null ? "null" : token);

                    boolean sendOfflineMsg = false;
                    if (!StringUtils.isEmpty(token)) {
                        Session session = sessionMap.get(token);
                        log.info("session is {}", session == null ? "null" : "not null");
                        if (session == null || !sendMessage(session,
                                message.getMsg().toString())) {
                            sendOfflineMsg = true;
                        }
                    } else {
                        sendOfflineMsg = true;
                    }
                    log.info("ws msg: role -> 【{}】, id -> 【{}】, terminal -> 【{}】, status -> 【{}】",
                            message.getRole(),
                            id,
                            i == 1 ? LoginType.APP.name() : LoginType.WECHAT_APPLET.name(),
                            sendOfflineMsg ? "offline" : "online");
                }
            });
        }
    }
}

public boolean sendMessage(Session session, String message) {
    session.getBasicRemote().sendPong();
    if (!session.isOpen()) {
        return false;
    }
    try {
        session.getBasicRemote().sendText(message);
    } catch (IOException e) {
        log.error("send message to {} error {}", session.getId(), e);
        return false;
    }
    return true;
}

后记

按照上述架构完成的多实例WS服务部署，可以解决前面提到的两个问题。MQ作为一个中间这的角色，发挥出了它的作用。
